Place of Origin:
Sichuan Chengdu
Brand Name:
DUKE
Certification:
ISO 9001:2008/EN263/SGS
Model Number:
Sanitary
Video

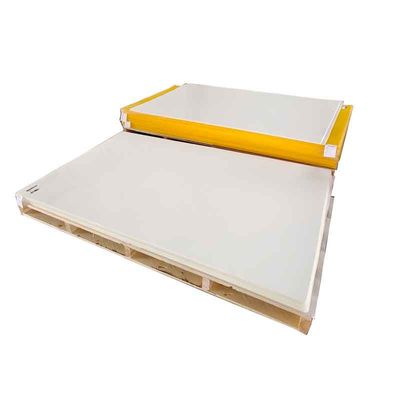

100% Virgin Mitsubishi MMA Monomer Cast Types Glass Acrylic Sheet
Feature
1. Processability:Can according to the drawing's requirements to hot bending and cold bending to achieve multiple design criteria
2. Long life:By modified for mula and special process,ensure that the sound insulation board service life of 25 years.
3. Workability:Light-weight,only equivalent weight of ordinary glass 1/2,will much reduce the bridge bearing load,convenient installation and construction.
4. Bneding arc:The domestic initiative bending arc technology reach the industry's top level.
5. Weatherability:Can be safe to use and maintain physical stability during bad weather conditions from -45℃ to 115℃.
6. Environment-protection:A new type of transparent material which can instead of the traditional material laminated glass,PC,etc.More green environmental protection,sustainable recovery 100%.
7. Impact resistance:The surface intact when tested by 4KG DWTT,and has excellent surface hardness,not easy to scratch.
Parameters Table:
| Product Name | acrylic sheet plexiglass |
| Material | 100% virgin Mitsubishi MMA |
| Modulus of Elasticity | ≥3100MPa |
| Vicat Softening Temperature(1.8MPA) | ≥110℃ |
| Bending Strength | ≥98MPa |
| Water Absorption | 0.30% |
| Tensile Strain | ≥70 MPa |
| Specific Gravity | 1.19 |
| Rockwell Hardness(R) | 95 |
| Elongation at Break | 4% |
| Compressive Strength | 130MPa |
Chengdu Cast Acrylic Panel Co.,Ltd(CDA) is the wholly owned subsidiary of Monarch Group relies on the industry-leading technical support of Mitsubishi Rayon Co.,Ltd,CDA produced acrylic sheet named Brand DUKE.CDA is a company intergrating R&D,productio,manufacturing and sales and it is in absolute leading position of the domestic PMMA industry.Product wild used in sanitary,AD sign,aquarium board,noise barrier board,etc.
Founded in 2007,covers an area of 52000 square meters,total investment of 120 million.Factory layout and facilities are all in accordance with the world's leading standard,with two of the world advanced level cast production lines,Annual capacity can reach to 10000 tons per year.Using 100% pure new Mitsubishi MMA material ,English Pilkington Mould and imported color paste to insure manufacture the high qualitu carylic sheets.
