|Place of Origin:||Sichuan|
|Minimum Order Quantity:||100 Kilograms|
|Packaging Details:||Sheets corner protected with paper corner protection,covered with plastic protection film|
|Delivery Time:||7-15 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union|
|Supply Ability:||100000 Ton/Tons per Month|
|Product Type:||Soundproof Acrylic Sheet||Material:||100%Mitsubishi MMA|
|Density:||1.2g/cm3||Thickness:||8mm 20mm 40mm|
Sound Barrier Fence 20mm,
1.2g/cm3 Sound Barrier Fence,
100%Mitsubishi MMA Soundproof Acrylic Sheet

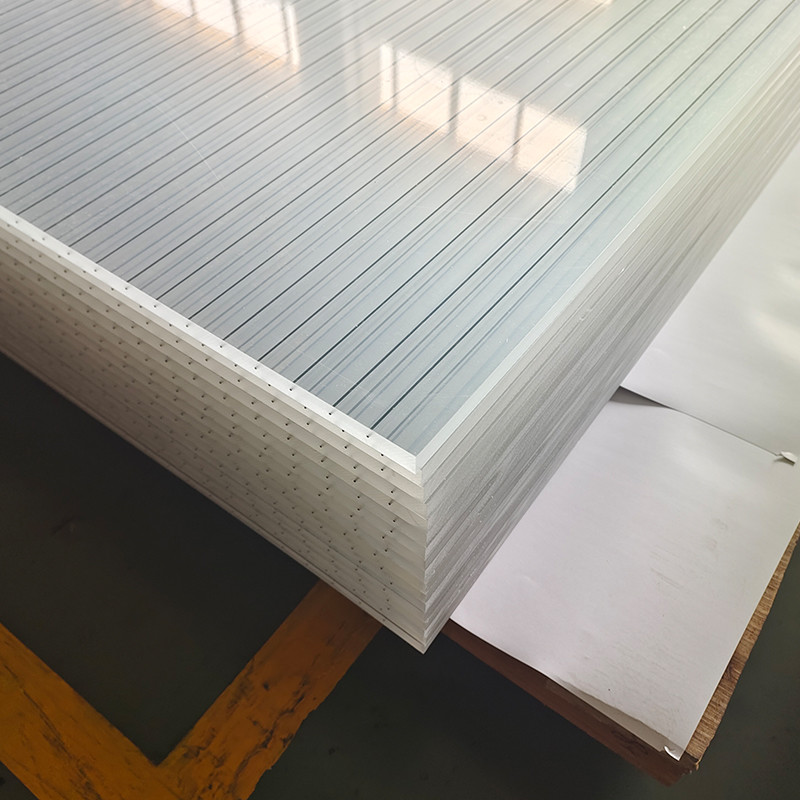

20mm Noise Barrier Soundproof Wall Isolation Sound Barrier Fence
Why is the acrylic stiffener sheet used for acoustic barriers?
1. Acrylic board also known as perspex is an important thermoplastic material early developed. Mainly used in construction, sanitary ware, advertising, decoration and so on. As a sound barrier transparent material, there are less applications in domestic. This board has good weather resistance, no need for UV treatment, color transparent, large surface which can be made and simple fixed way and so on. While it is conducive to clean dust, with good landscape effect.
2. DUKE Sound insulation of this acrylic sheet can achieve 30db(A). It can fully meet the requirements of the sound barrier, and has high transmittance, resistance to yellowing, and a good landscape effect. But the problem is: thicker plate prices are more expensive and impact resistance worse than the pc board. Sound barrier sheets are used in many domestic projects, with height 3.65m, can reduce 6-7db. At present, mass production of transparent acrylic sheet of 8-20mm thick has been realized in China. By means of reinforcement in the plate, the impact resistance is also improved. There are more and more countries use acrylic stiffener to build sound barrier.
1. Processability:Can according to the drawing's requirements to hot bending and cold bending to achieve multiple design criteria
2. Long life:By modified for mula and special process,ensure that the sound insulation board service life of 25 years.
3. Workability:Light-weight,only equivalent weight of ordinary glass 1/2,will much reduce the bridge bearing load,convenient installation and construction.
4. Transparency:Transmission rate up to 93%,the surface gloss and have beautiful appearance.
5. Weatherability:Can be safe to use and maintain physical stability during bad weather conditions from -45℃ to 115℃.
6. Environment-protection:A new type of transparent material which can instead of the traditional material laminated glass,PC,etc.More green environmental protection,sustainable recovery 100%.
7. Impact resistance:The surface intact when tested by 4KG DWTT,and has excellent surface hardness,not easy to scratch.
|Products Name||Sound Barrier(Noise Barrier)|
|Noise Reduction Effect||Sound reduction index:25-40 DB(A); NRC:0.7-0.83|
|Surface Groove||According your drawing or request|
|Thickness||80MM,100MM,120MM,140MM etc.(According your request)|
|Usage||Highway, Flyover,Railway,Community,Cooling tower,Air Conditioning Unit,Factory,Workshop equipment etc.|
Chengdu Cast Acrylic Panel Co.,Ltd(CDA) is the wholly owned subsidiary of Monarch Group relies on the industry-leading technical support of Mitsubishi Rayon Co.,Ltd,CDA produced acrylic sheet named Brand DUKE.CDA is a company intergrating R&D,productio,manufacturing and sales and it is in absolute leading position of the domestic PMMA industry.Product wild used in sanitary,AD sign,aquarium board,noise barrier board,etc. Founded in 2007,covers an area of 52000 square meters,total investment of 120 million.Factory layout and facilities are all in accordance with the world's leading standard,with two of the world advanced level cast production lines,Annual capacity can reach to 10000 tons per year.Using 100% pure new Mitsubishi MMA material ,English Pilkington Mould and imported color paste to insure manufacture the high qualitu carylic sheets.
Q1: Whether the raw material is brand new
A1: Because we have been a partner of Mitsubishi Rayon for many years, we have promised to use only 100% pure new Mitsubishi MMA
Q2: Product tolerance
A2: The product adopts the world-class casting process, and we control the tolerance within 0.2mm
Q3: Product impurities
A3: The whole workshop of the company has strict environmental hygiene standards, multilayer special filter to eliminate the possible incorporation of impurities . we will carry out strict inspection for each batch of products, to ensure that the quality of each batch is the same
Q4: Product color
A4: We have 60 colors to choose from. If you need to customize, please specify in advance
A5: MOQ: 2000 kg
